Why choose a bottom-mounted magnetic mixer over a top-entry agitator?
In pharmaceutical, biotechnology, food, beverage, and fine chemical production, mixing technology directly influences product consistency, sterility, and process efficiency. Traditional top-entry agitators have been widely used for decades, but modern hygienic processing requirements increasingly demand equipment with lower contamination risks, easier cleaning procedures, and more stable mixing performance. This is where bottom-mounted magnetic mixers (single/multi-impeller) provide a reliable alternative by combining advanced magnetic drive technology with optimized impeller designs.
Unlike conventional mechanical shaft-driven mixers, magnetic mixing systems eliminate direct mechanical connections between the motor and the internal mixing components. The sealed structure reduces the possibility of leakage and contamination while supporting demanding CIP and SIP processes. Shiloc (Shanghai) Industrial Trade Co., Ltd. focuses on designing and supplying aseptic mixing equipment and heat exchange solutions for pharmaceutical, daily chemical, food, and fine chemical industries, providing customers with professional equipment solutions based on strict hygiene and performance requirements.
Single-impeller bottom-mounted magnetic mixers: efficient solutions for standard mixing applications
Single-impeller configurations are designed for standard mixing operations where uniform blending, suspension maintenance, and fluid circulation are the primary requirements. The structure places the magnetic drive mixer at the bottom of the vessel, allowing direct energy transfer into the liquid with minimal dead zones. Compared with top-entry agitators, this arrangement can provide more effective bottom circulation and is especially suitable for vessels with limited installation space.

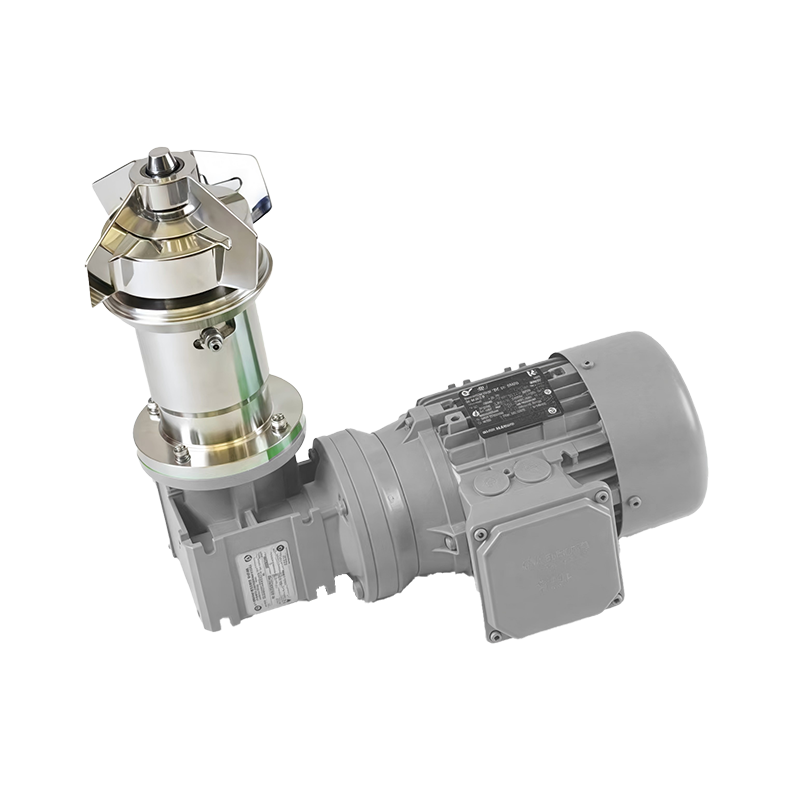

The bottom-mounted magnetic mixers (single/multi-impeller) designed for pharmaceutical and bioprocessing applications feature unique impeller geometries that generate efficient flow fields while maintaining moderate shear conditions. The impeller and weld post are manufactured from SUS316 L materials, with surface finishes reaching Ra = 0.5 um through electrolytic polishing. Tungsten carbide or silicon carbide bearings provide reliable operation under continuous mixing conditions.
These mixers are suitable for applications such as liquid blending, dilution, suspension maintenance, and heat transfer enhancement. The magnetic drive system protects the process environment by preventing external contamination pathways. For products sensitive to microbial contamination or requiring strict hygiene standards, the sealed design provides significant advantages over traditional shaft systems.
- Suitable for standard liquid mixing, blending, and suspension processes.
- Supports pharmaceutical and biotechnology hygiene requirements.
- Provides stable operation with low start-up volume requirements.
- Compatible with CIP and SIP cleaning processes.
Multi-impeller magnetic mixers: advanced performance for complex process requirements
Multi-impeller systems are developed for applications requiring enhanced circulation, higher mixing efficiency, or more complicated fluid behavior. By using multiple impeller stages, these mixers can improve vertical circulation and maintain consistent material distribution throughout larger vessels. Compared with single-impeller systems, multi-impeller designs provide stronger adaptability for processes involving higher viscosity materials, powder dispersion, and challenging suspension conditions.
Bottom-mounted Magnetic Mixers (Single/Multi-impeller) with multi-impeller structures can optimize mixing performance through carefully designed impeller profiles. The equipment is recommended for applications where powders are difficult to disperse into liquids or where maintaining uniform suspension is critical. The impeller speed range can be adjusted according to process requirements, with available operating speeds generally covering 150 to 500 rpm for variable-speed control.
The multi-impeller category provides advantages in large-volume processing environments, including improved flow distribution, reduced product concentration differences, and enhanced heat transfer efficiency. The magnetic drive system also allows operation without exposed rotating shafts, helping manufacturers achieve cleaner and safer production conditions.
| Category | Single-impeller magnetic mixer | Multi-impeller magnetic mixer |
| Main function | Standard blending, suspension, and circulation | Complex mixing, powder dispersion, and high-volume processing |
| Impeller structure | One optimized impeller unit | Multiple impeller stages for enhanced circulation |
| Typical applications | Pharmaceutical liquids, food ingredients, chemical solutions | Higher viscosity materials and demanding suspension processes |
| Main advantage | Simple structure and reliable operation | Improved mixing uniformity and process flexibility |
Aseptic magnetic mixers for pharmaceutical and biotechnology industries
Aseptic processing requires equipment that can maintain product purity throughout the entire manufacturing cycle. Magnetic mixers are particularly suitable for pharmaceutical and biotechnology applications because the drive system separates the motor section from the product-contact area. This design minimizes contamination risks and supports strict regulatory expectations.
Bottom-mounted Magnetic Mixers (Single/Multi-impeller) used in aseptic environments are designed with FDA-compliant principles and optimized contact materials. All wetted parts can be manufactured from 1.4435 or 1.4404 stainless steel, while FEP-encapsulated O-rings provide dependable sealing performance. The combination of hygienic materials, polished surfaces, and magnetic transmission technology makes these mixers suitable for sensitive manufacturing processes.
Shiloc (Shanghai) Industrial Trade Co., Ltd. provides engineering-oriented solutions by integrating European know-how and Danish design concepts. The company operates a 3,000 square meter Shanghai production facility with more than 20 technical specialists, supporting equipment manufacturing, import and export services, engineering consultation, and customized technical solutions. Through strict quality control systems and ISO9001-related management practices, each unit is inspected to meet hygiene and performance requirements before delivery.
- Analyze process requirements, including viscosity, mixing purpose, and cleaning conditions.
- Select suitable impeller configurations according to vessel size and material characteristics.
- Verify material compatibility, surface finish, and sealing requirements.
- Complete installation evaluation and performance testing before operation.
Why magnetic mixing technology is preferred over top-entry agitators
Top-entry agitators require a mechanical shaft connection passing through the vessel cover, which may introduce additional sealing requirements and maintenance considerations. In contrast, bottom-mounted magnetic mixers use a sealed magnetic coupling system that reduces mechanical contact points and improves equipment reliability. This makes them particularly valuable in industries where contamination prevention and cleaning efficiency are essential.
Another important advantage is installation flexibility. Bottom-mounted systems can provide effective mixing without requiring large overhead structures, making them suitable for compact production areas. Their optimized impeller flow pattern helps maintain stable circulation, while low shear characteristics protect sensitive biological or pharmaceutical materials.
Shiloc (Shanghai) Industrial Trade Co., Ltd. also supports customers through its international supply network, where core materials are sourced from reliable global suppliers and processed through internal welding and polishing capabilities. This approach ensures traceability, shorter delivery cycles, and consistent equipment quality for customers in different industries.
Frequently Asked Questions
Q1: What is the main difference between a bottom-mounted magnetic mixer and a top-entry agitator?
A bottom-mounted magnetic mixer uses a sealed magnetic drive system without a direct shaft connection, reducing contamination risks and maintenance requirements. A top-entry agitator generally relies on mechanical shaft transmission, which requires more sealing components.
Q2: Are bottom-mounted Magnetic Mixers (Single/Multi-impeller) suitable for pharmaceutical applications?
Yes. These mixers are designed for pharmaceutical and biotechnology industries with hygienic materials, polished contact surfaces, and magnetic drive technology that supports aseptic processing requirements.
Q3: When should a multi-impeller mixer be selected instead of a single-impeller design?
Multi-impeller mixers are recommended for larger vessels, higher viscosity materials, powder dispersion processes, or applications requiring stronger circulation and improved mixing uniformity.
Q4: What solutions can Shiloc (Shanghai) Industrial Trade Co., Ltd. provide for mixing equipment projects?
Shiloc (Shanghai) Industrial Trade Co., Ltd. provides equipment manufacturing, engineering technical services, import and export solutions, and customized aseptic mixing equipment support for pharmaceutical, food, daily chemical, and fine chemical industries.
